YC-RH-L1 pipeline type high-shear

dispersion emulsifier

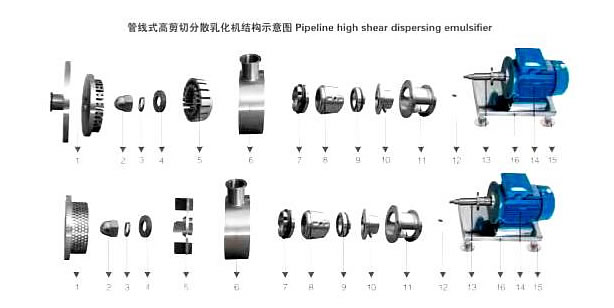

1.定子 2.螺帽3.弹垫4.平垫5.转子6.泵腔7机械密密封(静环)8.机械密封(动环)9.机械密封(静环)

10.密封冷却座11.泵机座12.销子13.泵轴14.电机15.支脚16.机架

1.Stator 2.Scrwe cap 3.Flexible gasket 4.Flat gasket 5 Rotor 6. Pump cavity 7. Mechanical seal (stationary) 8. Mechanical seal(moving ring) 9.Mechanical seal(stationary)10.Seal cool seat 11.Pump seat 12. Pin 13.Pump shaft 14.Motor 15.Suppirt 16.Frame

工作原理

管线高剪切分散乳化机是用于连续生产或循环处理精细物料的高性能设备,在狭窄空间的腔体内,装有1-3组对偶咬合的多层定、转子。转子在马达的驱动下高速旋转产生强劲的轴向吸力将物料吸入腔体。在最短的时间内对物料进行分散、剪切、乳化处理,粒径分布范围也显著变窄。由此可制得精细的长期稳定的产品。

Working principle

The pipeline type high-shear dispersion emulsifier is a piece of high performance equipment used for continuous production or circulating processing of fine materials. Inside the narrow space of its chamber, it is mounted with 1-3 groups of dual-geared multilayer stators and rotors. The materials are sucked into the chamber by the strong axial suction produced by the fast-turning rotor driven by the motor. Within the shortest time, the materials will be processed by the operation of dispersion, shearing and emulsification, after which the size distribution will be within a narrow range, and the finished products will be fine and stable for a long period.

应用领域

精细化工:颜料、胶水、密封剂、树脂乳化、杀菌剂、混凝剂石油化工:润滑油脂、柴油乳化、沥青改性、催化剂、石蜡乳化生物医药:注射剂、抗菌素、药膏、生物制剂、微胶囊乳化、糖衣涂料油墨:印刷油墨、乳胶漆、建筑涂料、汽车漆、涂料助剂农药:杀菌剂、种衣剂、除草剂、农药乳油、化肥、生物农药纳米材料:纳米材料分散解聚、反应萃取纳米产品食品工业:果汁、果酱、果冻、冰淇淋、乳制品、添加剂、茶饮料日化产品:洗涤剂、洗发水、面霜、唇膏、洗面奶、日用香精造纸:纸浆、胶黏剂、松香乳化、造纸助剂、树脂乳化

 Applications

Fine chemical industry: pigment, glue, sealant, resin emulsifying,disinfectant, coagulation agent

Petrochemical industry: lubricating grease, diesel oil emulsifying,asphalt modifying, catalyst, paraffin emulsifying.

Biopharmaceutical industry: injection, antibiotic, ointment, biologicalagent, microcapsule emulsifying, sugar-coat

Paint& ink: printing ink, emulsion paint, architectural coating,automotive paint, paint additives

Pesticide: disinfectant, seed coating agent, herbicide, pesticideemulsion, fertilizer, bio-pesticide

Nanomaterials: nanomaterials dispersion and depolymerization,reaction and extraction of nano products

Food industry: fruit juice, jam, jelly, ice cream, dairy products,additives, tea beverage

Daily chemical products: detergent, shampoo, face cream, lipstick,cleanser, daily fragrance

Pulp & paper: pulp, adhesive, rosin emulsion, paper additives, resinemulsion

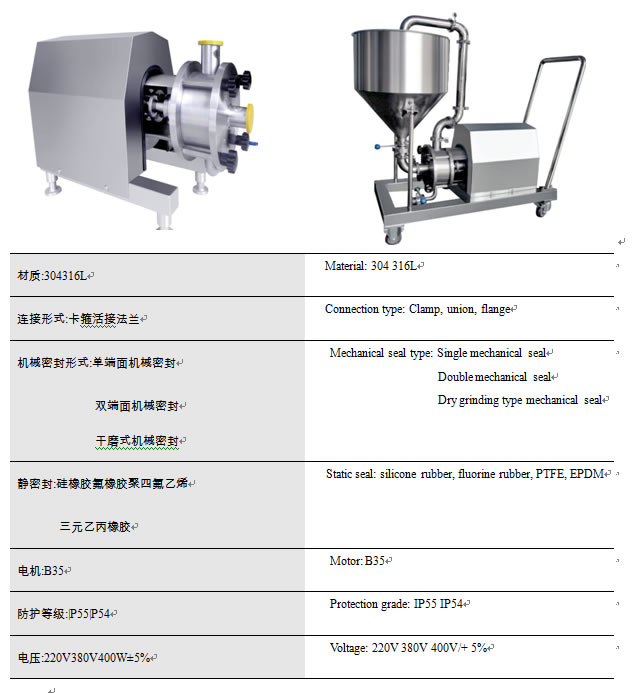

YC-RH-L1管线式高剪切分散乳化机

YC-RH-L1 pipeline type high-shear dispersion emulsifier
